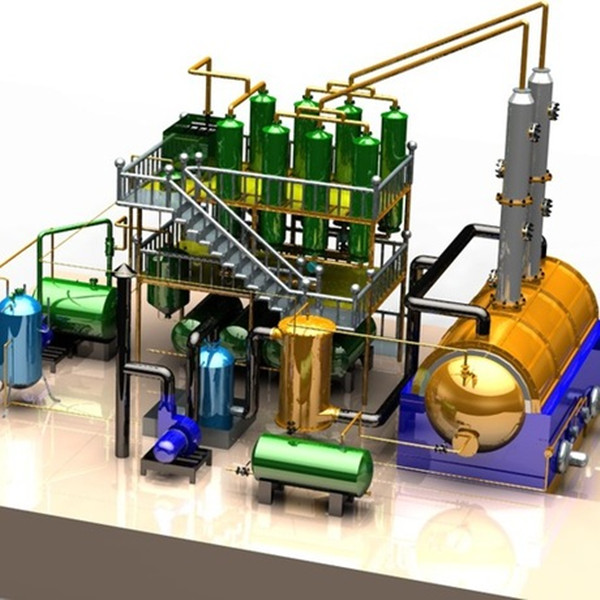

Waste Oil Distillation Plant
Waste Oil Distillation Plant is project which use the sludge,waste engine oil, tyre pyrolysis oil,plastic pyrolysis oil, sump oil as raw material, use the special distillation and refining technology to get oil. Waste Oil Distillation Plant can make the oil yield reach as high as 80%-90%. Our company is in the leading level in machinery, technology. marketing, research and development.

Contact: *
Company: MSN/skype:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Waste Oil Distillation Plant is self-shunt vacuum distillation unit, distillation system uses a tube furnace (independent research) heating the continuous distillation process under negative pressure to be waste oil distillation.Because the waste oil contains large amounts of water so we should dehydration before distillation.For example, the raw material ( like used engine oil) recovery is more than 90% when the water percentage is less than 5%.

Raw Material

Waste Oil Distillation Plant can be used for refining waste oil, waste engine oil, sludge, pyrolysis oil (tyre pyrolysis oil and plastic pyrolysis oil) and sump oil into qualified diesel fuel. And the diesel oil can be directly used in low speed engines and generators.

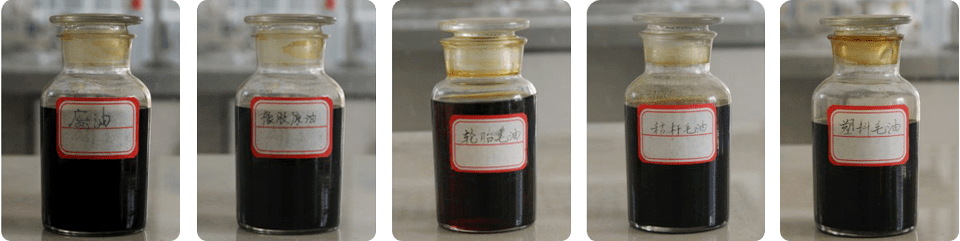

Waste Oil Distillation Plant_Raw Materials

                       Waste Oil                                      Rubber Crude Oil                                        Tire Crude Oil                                      Straw Crude Oil                               Plastic Carbon Oil

Production Process

In the process of waste oil distillation plant,The cold materials (waste oil) should be pre-heat exchanger with the overhead vapor phase component first.Materials after heat exchange into the falling film evaporator using secondary heating flue gas dehydration,and then through the tube furnace heating again after after the temperature meet the process requirements into ectification within the column Control reflux ratio at the same time, On the top of the gas phase components after heat exchange with the raw condensation receiving tank into the light components, To restructuring after restructuring of condensing tank,Tank bottom components into the slag,Non-condensable gas back into the tube furnace combustion after water seal.

Final Products And Application

Waste Oil Distillation Plant can purify waste tire oil, plastic oil, waste engine oil, the final diesel can be used for tractors, trucks, and diesel oil generators, ships etc.

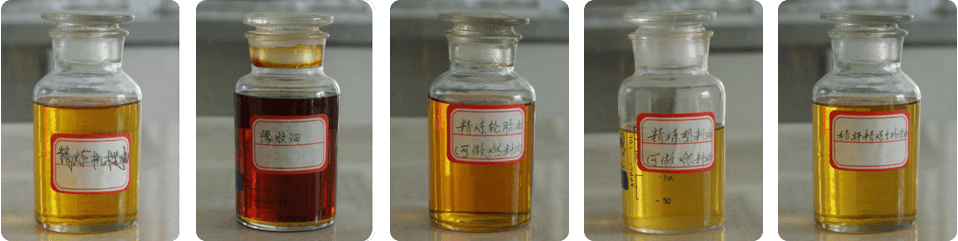

Waste Oil Distillation Plant Final Products And Application

          Refined Mechanical Oil                         Refined Rubber Oil                               Refined Tire Oil                                  Refined Plastic Oil                                   Refined straw Oil

Technology Characteristics

1. The tyre pyrolysis oil distillation plant adopts new approaches of the project techincal, economic, and ecological benefit is remarkable,greatly saves the cost of production,but also save the equipment investment,widen the elasticity of poeration,also has brought great convenience to production operation.

2. Raw material and product continuous beat exchange for many times,to realize the continuous cycle of heat energy utilization.

3. Rectification is under negative pressure, reduce the reaction temperature, saves energy and reduces the production cost, but also avoid the waste oil cracking at high temperatures.

4. By adiusting the reflux ratio ensure the color of the product.

Technology And Services

Design the layout drawings according to the site of customers.For each set of waste oil distillation plant, one engineer will be sent to complete the installation, test the machine and train the workers.We guarantee for you with lifelong maintenance at all times. Engineers are available to serve at any time within one year warranty.After-service department will give periodical call visit to make sure there is no problem of the equipment or find the problem timely and solve it immediately.

Waste Oil Distillation Plant Technology And Services
